Product Description

This condenser is a customized air conditioning condenser for high-end customers. The machine is used in harsh environments and requires high anti-corrosion and heat dissipation performance. It is the preferred product for island and oil tanker air conditioning.



PRODUCT PARAMETERS
Product name Copper condensers
Size mm (length * width * height) 700*700*300 Gross weight (KG) 25
Material Description Copper tube, copper foil, stainless steel plate
Maximum rated pressure 3Mpa Working temperature range -40～200℃
Keyword Excellent heat dissipation performance and corrosion resistance Warranty period 1 year

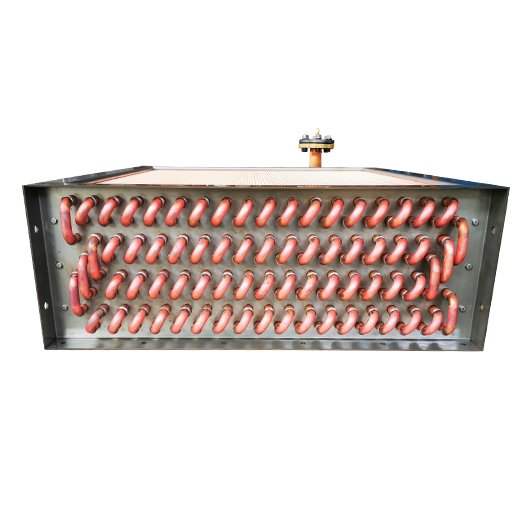

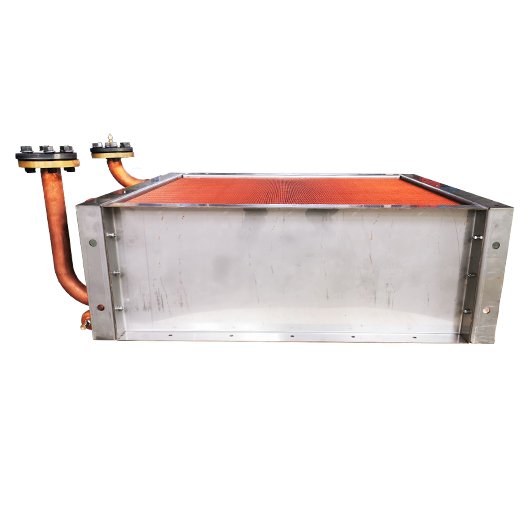

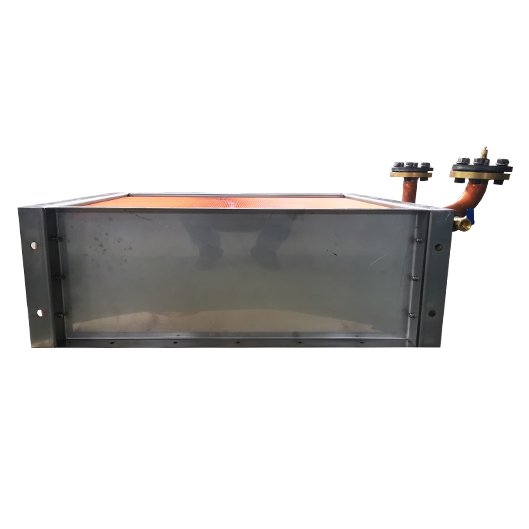

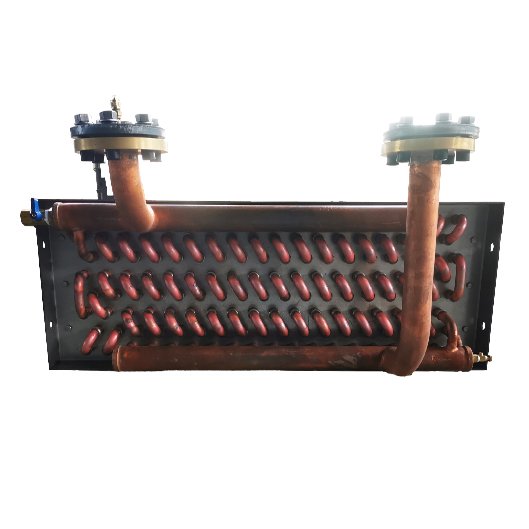

Product Show



Our company supports customized production of products according to customer drawings. Relying on the existing mold resources of the factory, corresponding models can be quickly matched and processed, achieving direct production without mold opening, significantly shortening the delivery cycle, and ensuring customer production needs





MODEL LIST OF HEAT EXCHANGER

 Number A(mm) B(mm) C(mm) D(mm) Fin form
1 21 18.19 2-4 5 Flat sheet, window opening sheet,
2 21 12.7 1.3-3.5 7 Flat sheet, window opening sheet,
3 25 21.65 1.8-3.5 7 Flat sheet, window opening sheet, corrugated sheet
4 25.4 16 1.8-3.2 7.94 Flat sheet, window opening sheet, corrugated sheet
5 25.4 19.05 3-5 7.94 Flat sheet, window opening sheet, corrugated sheet
6 25 21.65 1.8-5.2 7.94 Flat sheet, window opening sheet,
7 20.5 17.5 1.5-2.5 7.94 Flat sheet, window opening sheet,
8 31.75 27.5 3-7 9.52 corrugated sheet
9 25 25 2.5-4.2 9.52 corrugated sheet
10 30 30 3-6 9.52 corrugated sheet
11 25 21.65 1.5-6.0 9.52 Flat sheet, window opening sheet, corrugated sheet
12 25.4 15.88 1.5-2.5 9.52 Flat sheet, window opening sheet, corrugated sheet
13 25.4 22 1.8-3.0 9.52 Flat sheet, window opening sheet, corrugated sheet
14 35 35 6-9 11.5 corrugated sheet
15 48 48 4.5-9 12.7 corrugated sheet
16 38 32.9 3.6-9 12.7 corrugated sheet
17 75 25 8-10 12.7 Flat sheet, corrugated sheet
18 60 30 6-10 12.7 Flat sheet   corrugated sheet
19 31.75 27.5 3-5 12.7 Flat sheet  corrugated sheet
20 38.1 38.1 10-13 15.88 corrugated sheet
21 38.1 33 2-4 15.88 Flat sheet  corrugated sheet
22 60 50 3-10 19 Flat sheet, corrugated sheet
23 60 50 3-10 25 Flat sheet, corrugated sheet



MODEL OF MICROCHANNEL HEAT EXCHANGER

CONDENSER FLAT TUBE
Number Flat tube model Fin wave height(mm)
1 16 * 2-12R 8
2 16 * 1.8-18R 8/ 6
3 16 * 1.8-12R 8/ 6
4 16 * 1.4-18R 5
5 18 * 2-15R 8
6 18 * 2-10R 8
7 20 * 2-15R 8
8 20 * 1.8-15R 8/ 6.2
9 20 * 1.2-19R 5
10 25.5 * 2-15R 8
11 26 * 2-15R 6
12 36 * 2-26R 8



EVAPORATOR FLAT TUBE
Number Flat tube model Fin wave height(mm)
1 17 * 1.8-14R 5
2 26 * 2-15R 8



WARM AIR FLAT PIPE
Number Flat tube model Fin wave height(mm)
1 16 * 2-0 8
2 20 * 2-0 8
3 32 * 2-0 8
4 22 * 2-4R 6
5 26 * 2-4R 6
6 25.4 * 2-5R 8
