Product Description

This product has a simple design and provides conditions for automated tube expansion and welding in the production process. Therefore, the labor cost and loss of the product are small, and it is suitable for large-scale production, creating excellent conditions for the mobile air conditioning industry. End customers are satisfied with the price.



PRODUCT PARAMETERS

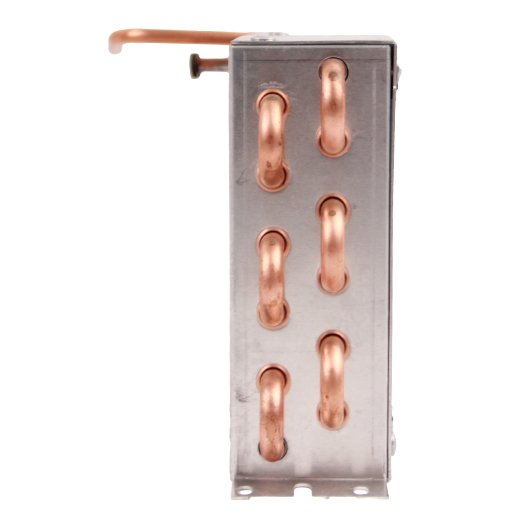

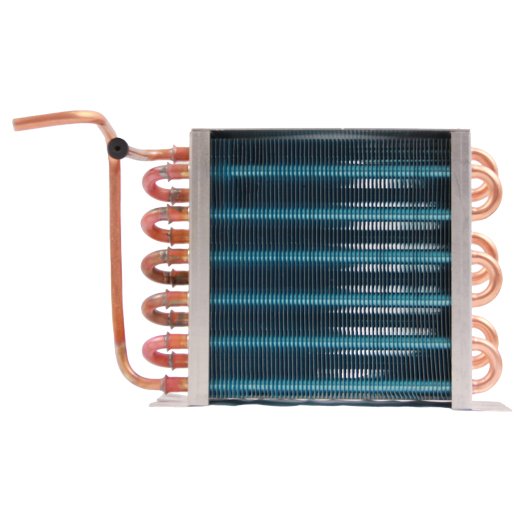

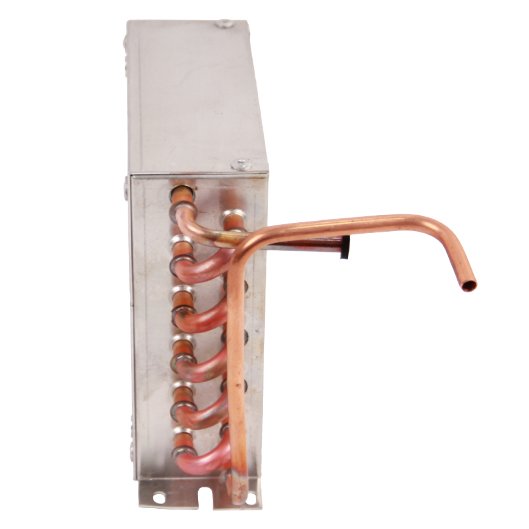

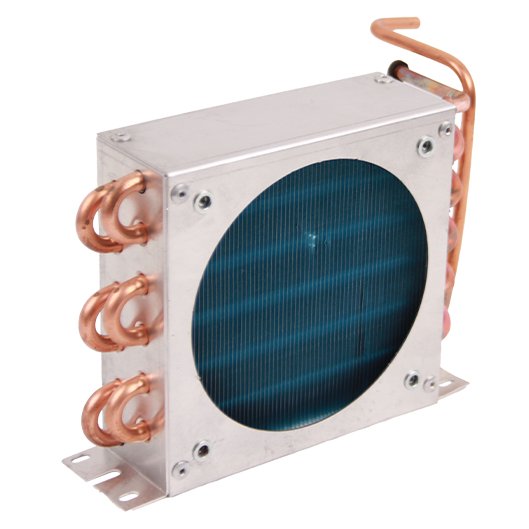

Product name Ice maker condensers-behine
Size mm (length * width * height) 180*130*50 Gross weight (KG) 0.5
Material Description Copper tube, Aluminum foil, Aluminum plate
Maximum rated pressure 3Mpa Working temperature range -40～200℃
Keyword  Supply in large quantities and offer discounted prices Warranty period 1 year

Product Show



Our company supports customized production of products according to customer drawings. Relying on the existing mold resources of the factory, corresponding models can be quickly matched and processed, achieving direct production without mold opening, significantly shortening the delivery cycle, and ensuring customer production needs





MODEL LIST OF HEAT EXCHANGER

 Number A(mm) B(mm) C(mm) D(mm) Fin form
1 21 18.19 2-4 5 Flat sheet, window opening sheet,
2 21 12.7 1.3-3.5 7 Flat sheet, window opening sheet,
3 25 21.65 1.8-3.5 7 Flat sheet, window opening sheet, corrugated sheet
4 25.4 16 1.8-3.2 7.94 Flat sheet, window opening sheet, corrugated sheet
5 25.4 19.05 3-5 7.94 Flat sheet, window opening sheet, corrugated sheet
6 25 21.65 1.8-5.2 7.94 Flat sheet, window opening sheet,
7 20.5 17.5 1.5-2.5 7.94 Flat sheet, window opening sheet,
8 31.75 27.5 3-7 9.52 corrugated sheet
9 25 25 2.5-4.2 9.52 corrugated sheet
10 30 30 3-6 9.52 corrugated sheet
11 25 21.65 1.5-6.0 9.52 Flat sheet, window opening sheet, corrugated sheet
12 25.4 15.88 1.5-2.5 9.52 Flat sheet, window opening sheet, corrugated sheet
13 25.4 22 1.8-3.0 9.52 Flat sheet, window opening sheet, corrugated sheet
14 35 35 6-9 11.5 corrugated sheet
15 48 48 4.5-9 12.7 corrugated sheet
16 38 32.9 3.6-9 12.7 corrugated sheet
17 75 25 8-10 12.7 Flat sheet, corrugated sheet
18 60 30 6-10 12.7 Flat sheet   corrugated sheet
19 31.75 27.5 3-5 12.7 Flat sheet  corrugated sheet
20 38.1 38.1 10-13 15.88 corrugated sheet
21 38.1 33 2-4 15.88 Flat sheet  corrugated sheet
22 60 50 3-10 19 Flat sheet, corrugated sheet
23 60 50 3-10 25 Flat sheet, corrugated sheet



MODEL OF MICROCHANNEL HEAT EXCHANGER

CONDENSER FLAT TUBE
Number Flat tube model Fin wave height(mm)
1 16 * 2-12R 8
2 16 * 1.8-18R 8/ 6
3 16 * 1.8-12R 8/ 6
4 16 * 1.4-18R 5
5 18 * 2-15R 8
6 18 * 2-10R 8
7 20 * 2-15R 8
8 20 * 1.8-15R 8/ 6.2
9 20 * 1.2-19R 5
10 25.5 * 2-15R 8
11 26 * 2-15R 6
12 36 * 2-26R 8



EVAPORATOR FLAT TUBE
Number Flat tube model Fin wave height(mm)
1 17 * 1.8-14R 5
2 26 * 2-15R 8



WARM AIR FLAT PIPE
Number Flat tube model Fin wave height(mm)
1 16 * 2-0 8
2 20 * 2-0 8
3 32 * 2-0 8
4 22 * 2-4R 6
5 26 * 2-4R 6
6 25.4 * 2-5R 8
